Fix Squeaky Wah Pedal: The Ultimate Guide

Updated at: 25/02/2025

That agonizing squeal from your wah pedal. It's a guitarist's nightmare, instantly ruining a perfectly good tone and driving even the most zen-like musician to the brink. A squeaky wah pedal is more than just annoying; it's a frustrating interruption to your creative flow. Whether it's a vintage classic or a brand-new model, that persistent squeak can stem from several sources, from loose screws and worn bushings to dried-out lubricant and even potentiometer issues. Fortunately, silencing that irritating sound is often simpler than you might think.

This ultimate guide will walk you through the common causes of wah pedal squeaks and provide clear, step-by-step instructions to fix them. We'll explore various troubleshooting techniques, from simple adjustments to more involved repairs, ensuring you have the knowledge and confidence to tackle the problem head-on. Prepare to banish that pesky squeak and rediscover the smooth, expressive tones your wah pedal was meant to deliver. Let's dive into the detailed repair process.

Preparation and Safety Guidelines

Tools Needed
  • Compressed air
  • WD-40
  • Silicone grease
  • Contact cleaner (optional)
Safety Guidelines
  • Always disconnect the wah pedal from your power source before attempting any repairs or adjustments. Electricity can be dangerous.
  • Use appropriate tools for the job. Improper tools can damage the pedal's internal components. If unsure, consult a repair manual or professional.
  • Be gentle when handling internal components. These are often delicate and easily broken.

Step-by-Step Instructions

  1. Clean and Lubricate Rocker Hinge

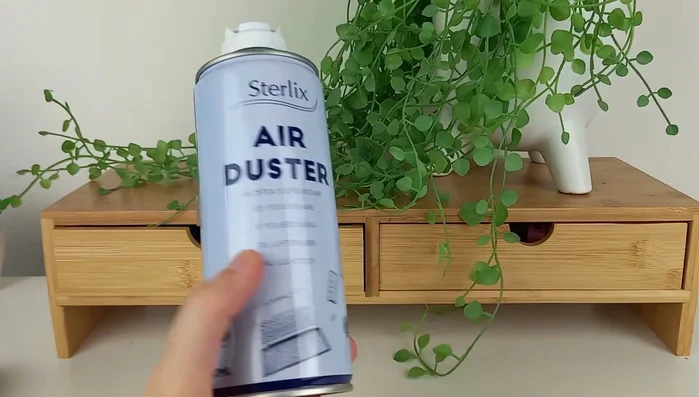

    • Clean the rocker hinge with compressed air to remove dirt, dust, or hair.

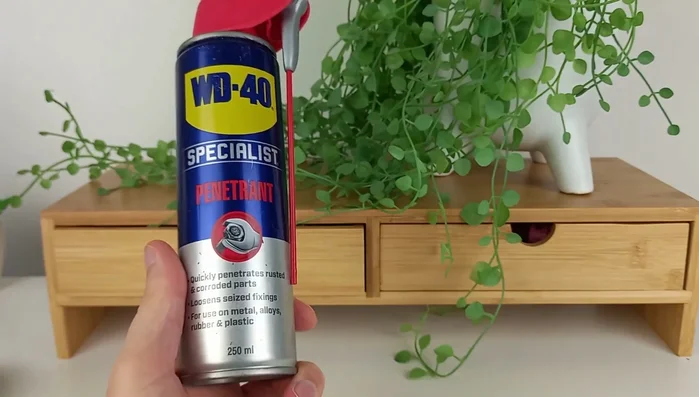

    • Lubricate both sides of the rocker hinge with WD-40. Work it in by moving the foot pedal back and forth.
    Lubricate both sides of the rocker hinge with WD-40. Work it in by moving the foot pedal back and forth.Lubricate both sides of the rocker hinge with WD-40. Work it in by moving the foot pedal back and forth.
    Clean and Lubricate Rocker Hinge

  2. Prepare the Rack

    • Remove the bottom of the pedal for better access to the rack.

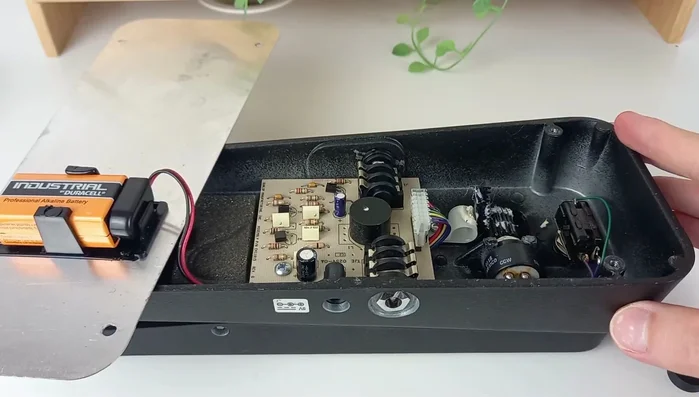

    Remove the bottom of the pedal for better access to the rack.
    Prepare the Rack

  3. Clean and Lubricate Rack

    • Clean out any hair or dirt from the rack mechanism.
    • Apply silicone grease to the front and back of the rack. Work it in by rocking the pedal.

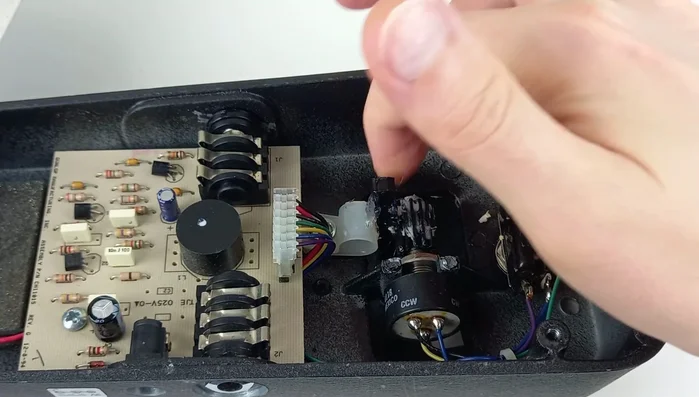

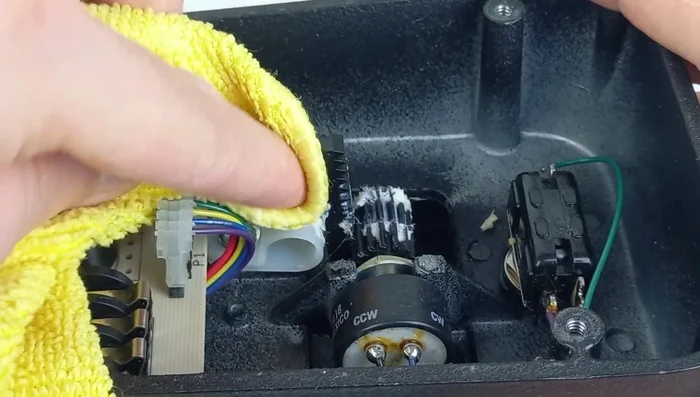

    Apply silicone grease to the front and back of the rack. Work it in by rocking the pedal.Apply silicone grease to the front and back of the rack. Work it in by rocking the pedal.
    Clean and Lubricate Rack

  4. Optional: Clean Potentiometer

    • (Optional) Clean the potentiometer with contact cleaner to remove dirt that might cause scratching or uneven jumps in the effect.

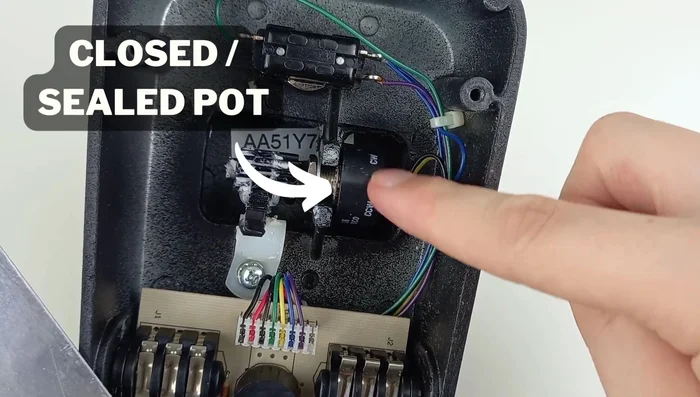

    (Optional) Clean the potentiometer with contact cleaner to remove dirt that might cause scratching or uneven jumps in the effect.
    Optional: Clean Potentiometer

Read more: Best Multi-Effects Pedals for Guitarists in 2017: A Comprehensive Review

Tips

  • Ideally, use lithium grease for the rocker hinge, but WD-40 works fine.
  • Use silicone grease for the rack as it's designed for plastic parts and won't damage them.
  • Clean your pedal periodically to prevent future squeaking. Store it in a case to keep dust out.

Common Mistakes to Avoid

1. Over-tightening screws

Reason: Excessive tightening can strip the screws or damage the internal components of the wah pedal, leading to further squeaking or even malfunction.
Solution: Tighten screws only until they are snug; avoid over-tightening.

2. Using the wrong type of lubricant

Reason: Using a lubricant that is too thick or thin, or one that is not designed for metal-on-metal contact, can attract dust and grit, exacerbating the squeaking or causing other problems.
Solution: Apply a small amount of a high-quality, light lubricant specifically designed for metal-on-metal contact.

FAQs

My wah pedal squeaks only when I use it, not when it's stationary. What's wrong?
This often indicates a problem with the potentiometer's internal components, specifically the wiper contact. It likely needs cleaning with contact cleaner or may require replacement. Check for any visible damage or debris.
I've cleaned everything and lubricated the moving parts, but my wah still squeaks. What else could it be?
The squeak might originate from the pedal's housing. Check for any loose screws or parts rubbing against each other. Tighten any loose screws or add a thin layer of felt or other non-abrasive material to prevent parts from contacting and rubbing. Sometimes the issue lies within the internal mechanism itself requiring a more advanced repair/replacement of components.
